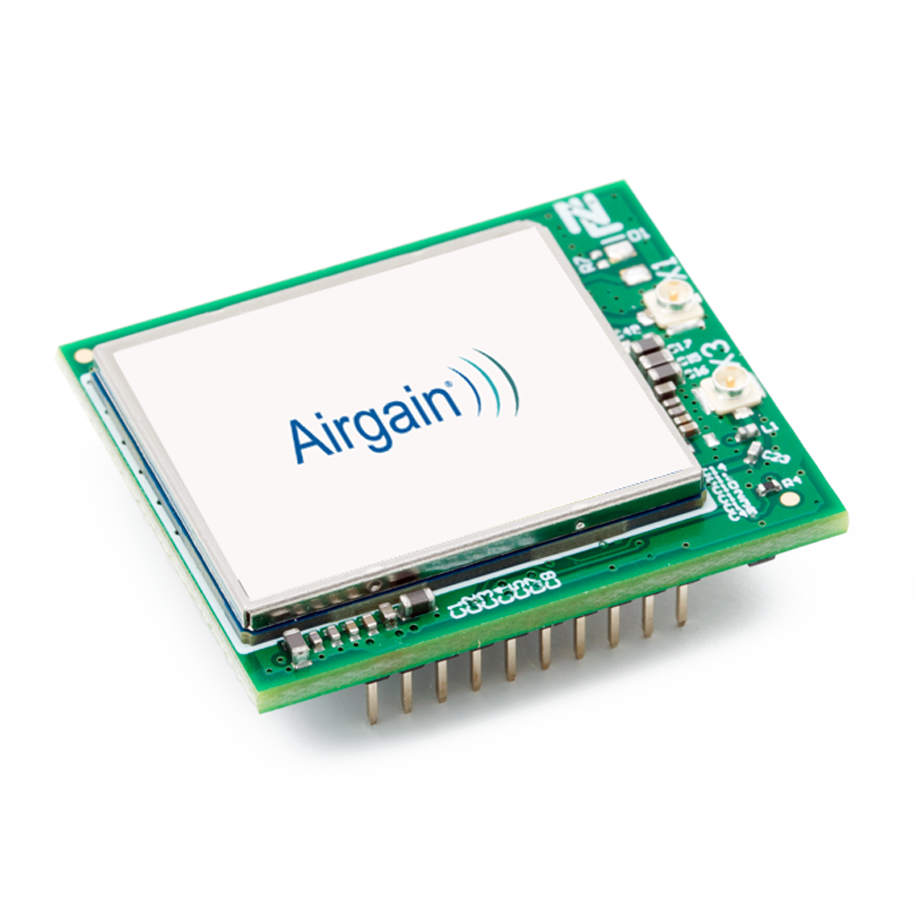

The NimbeLink NL-SW-LTE-QBG96 embedded modem offers LTE-M/NB-IoT connectivity for global applications with fallback to 2G, as well as an integrated GPS/GNSS radio. The NL-SW-LTE-QBG96 is compatible with many of the world’s LTE-M and NB-IoT networks.
NimbeLink embedded modems dramatically reduce the cost, risks and timelines of IoT product development. With known-good RF engineering and fully validated software, NimbeLink allows you to focus on your application and not engineering cellular radios. Standardized connectivity gives you flexibility to update and alternate radios for new geographies, carriers and technologies. Further, our embedded modems are “End-Device Certified”, meaning your end-product will not need to go through the complex process of carrier certification. This is critical for the first release of your product and each iteration as you obtain market feedback. NimbeLink modems significantly reduce time-to-market and are ideal for product development through large-scale production. All NimbeLink modems are patented and backed by industry leading documentation and expert-level product support. NL-SW-LTE-QBG96-C is now NRND, Not Recommended for New Design. The replacement part is the NL-SW-LTE-QBG96-D which is a firmware only, no HW change. Airgain recommends all customers move to the new FW version part to take advantage of the updates and added features. See the PCN. |
| Throughput |
|
| Active Cell | 230mA (LTE) | 415mA (GSM) |
| Average | 130 mA |
| Peak | 900 mA |
| Idle | 19 mA |
| Sleep | 680 uA |
| Input Voltage | 3.4V-4.3V |
| I/O Voltage | 1.65V-5.5V |
| Temperature Range | -40ºC to 85ºC |
| Dimensions | 29mm x 33mm x 10.5mm |
| Compliance | RoHS Compliant |
| Deployable Region | Global |
| Compatible Carriers | Orange, Telstra, Telus, T-Mobile, Vodafone |
| Certified Carriers | AT&T, Verizon |
| Bands |
|
| Documents | |
| Development Kit Reference Design | NL-SWDK2 |
| Application Notes | |
| Files & Drivers | |
| Certifications |
Submit a ticket for a specific Airgain product and our world-class Customer Support Team will assist!
NimbeLink, LTE-M, NB1, NB2, 2G fallback, with GNSS, Firmware BG95M3LAR02A03_01.004.01.004
NimbeLink, LTE-M, NB1, NB2, 2G fallback, with GNSS, Firmware BG95M3LAR02A03_01.009.01.009
NimbeLink, LTE-M, NB1, NB2, 2G fallback, with GNSS, Firmware BG95M3LAR02A03_01.014.01.014
NimbeLink, LTE-M, NB1, NB2, 2G fallback, with GNSS, Firmware BG95M3LAR02A03_01.200.01.20
