RECON5™ 5G

Up to 5-in-1 High Performance IP67/IP69K Antenna

Description
Tech Specs
Documentation

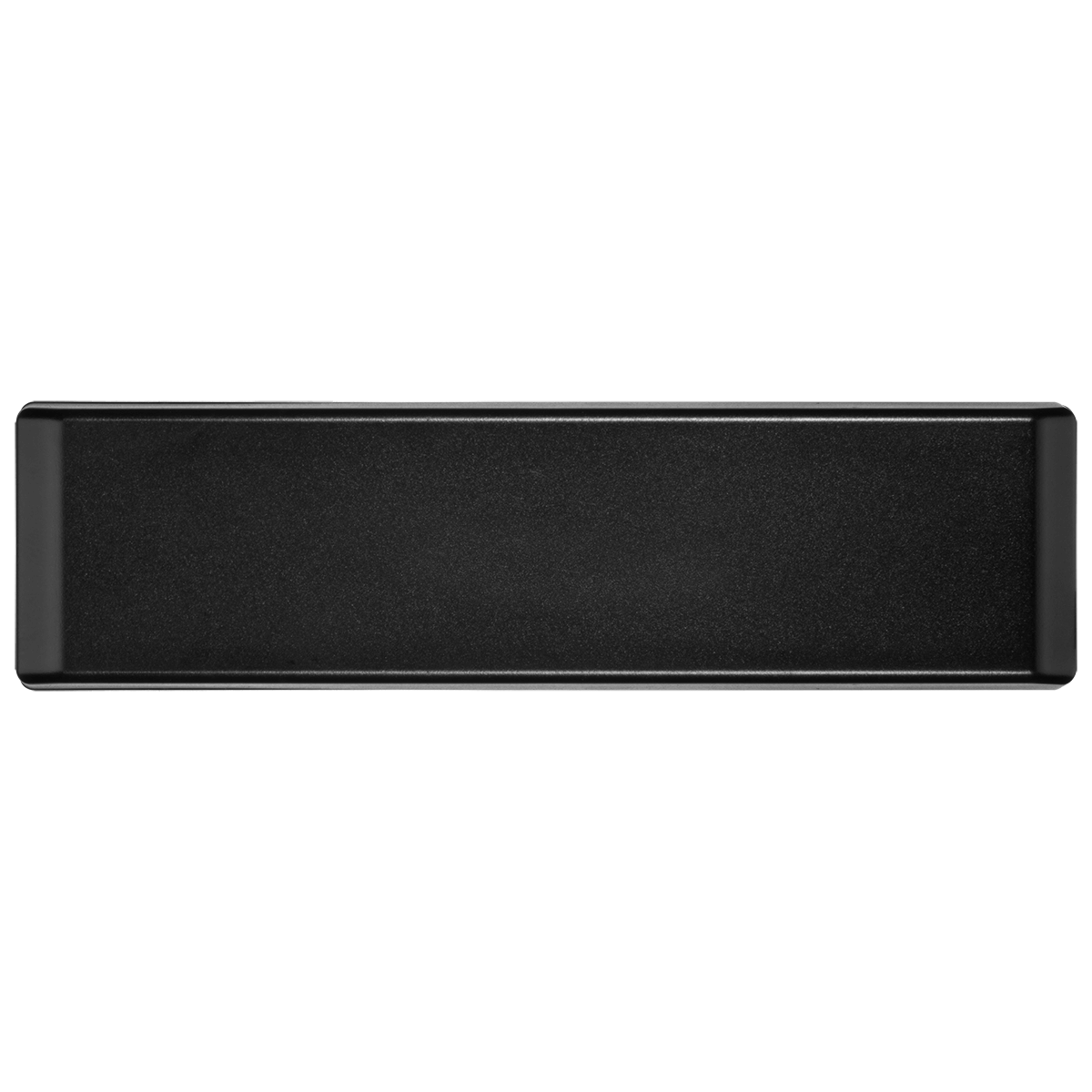

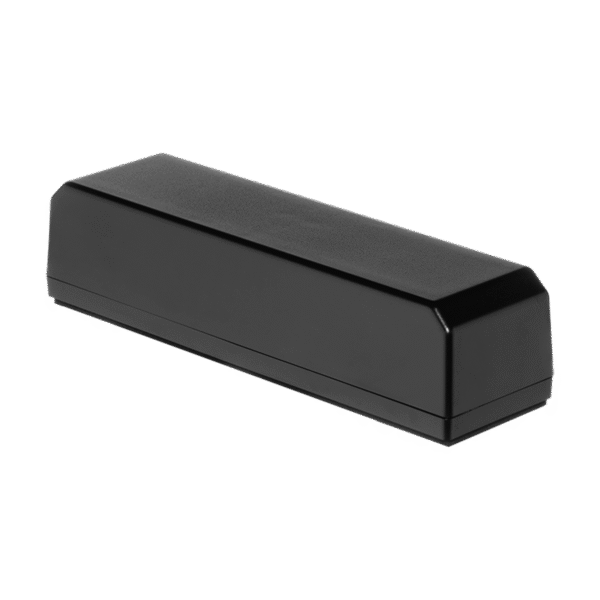

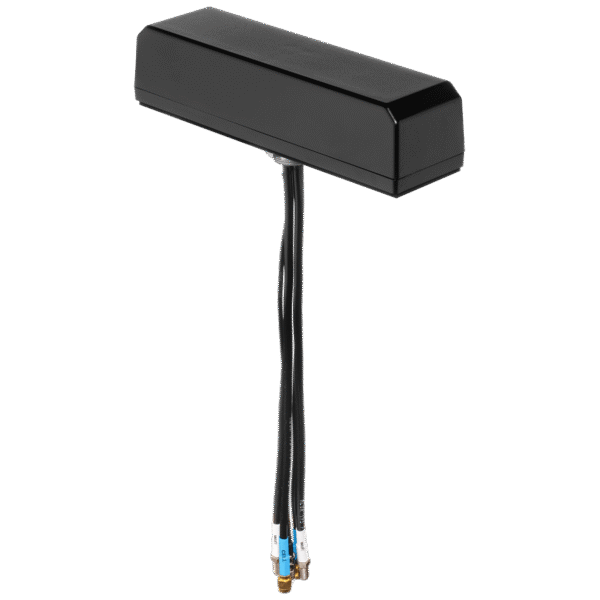

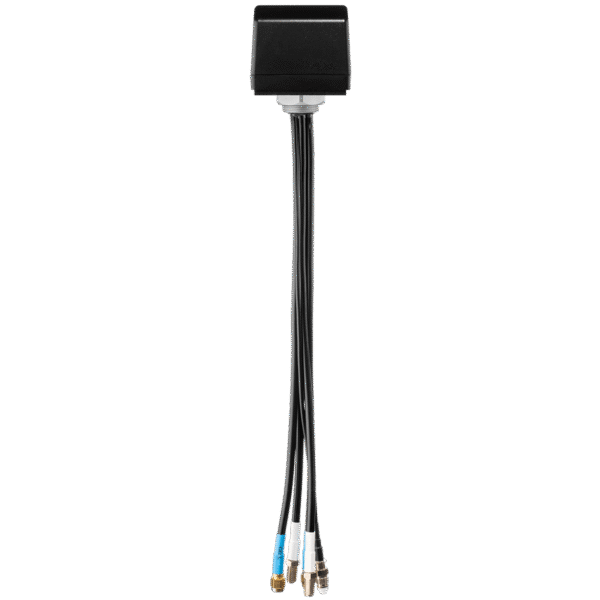

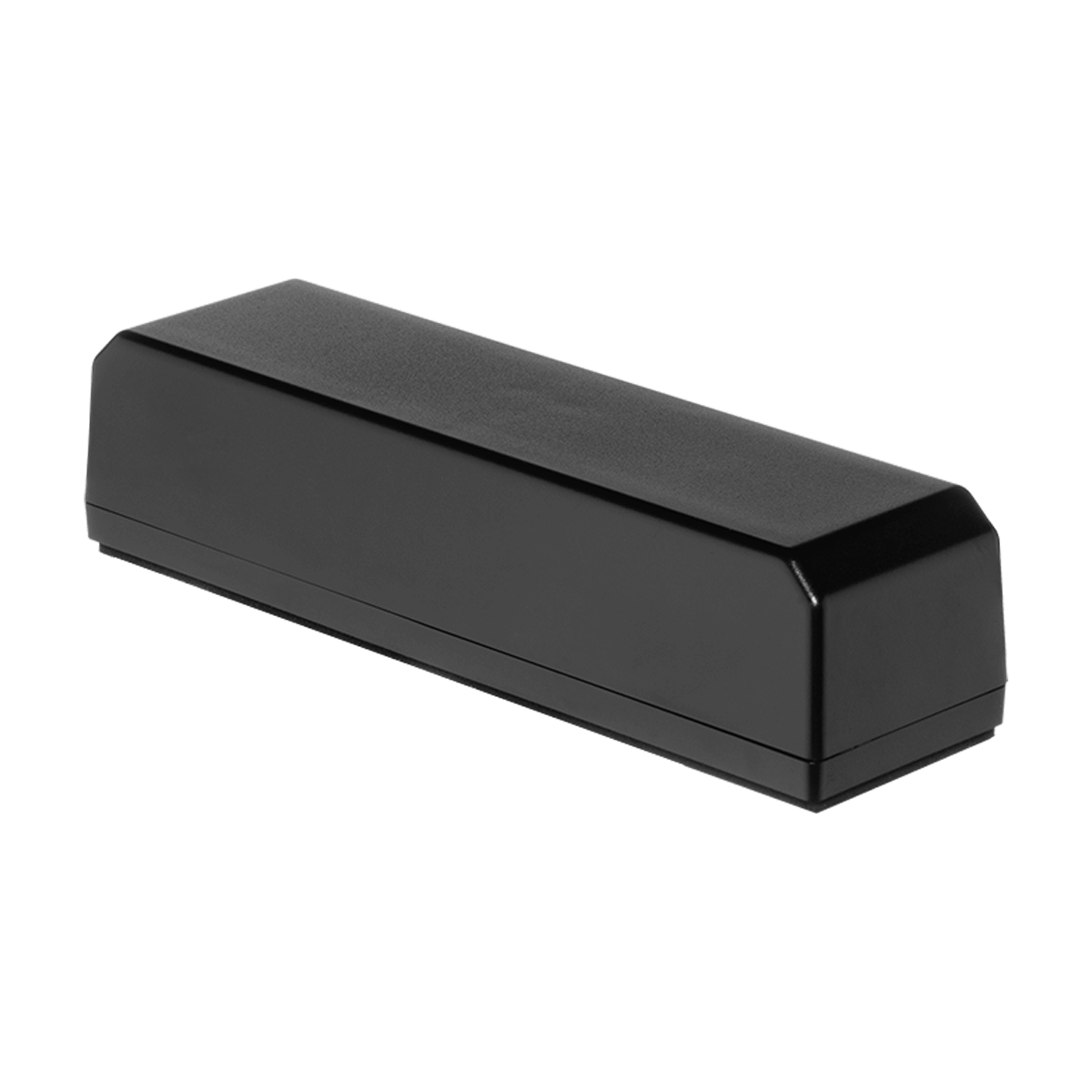

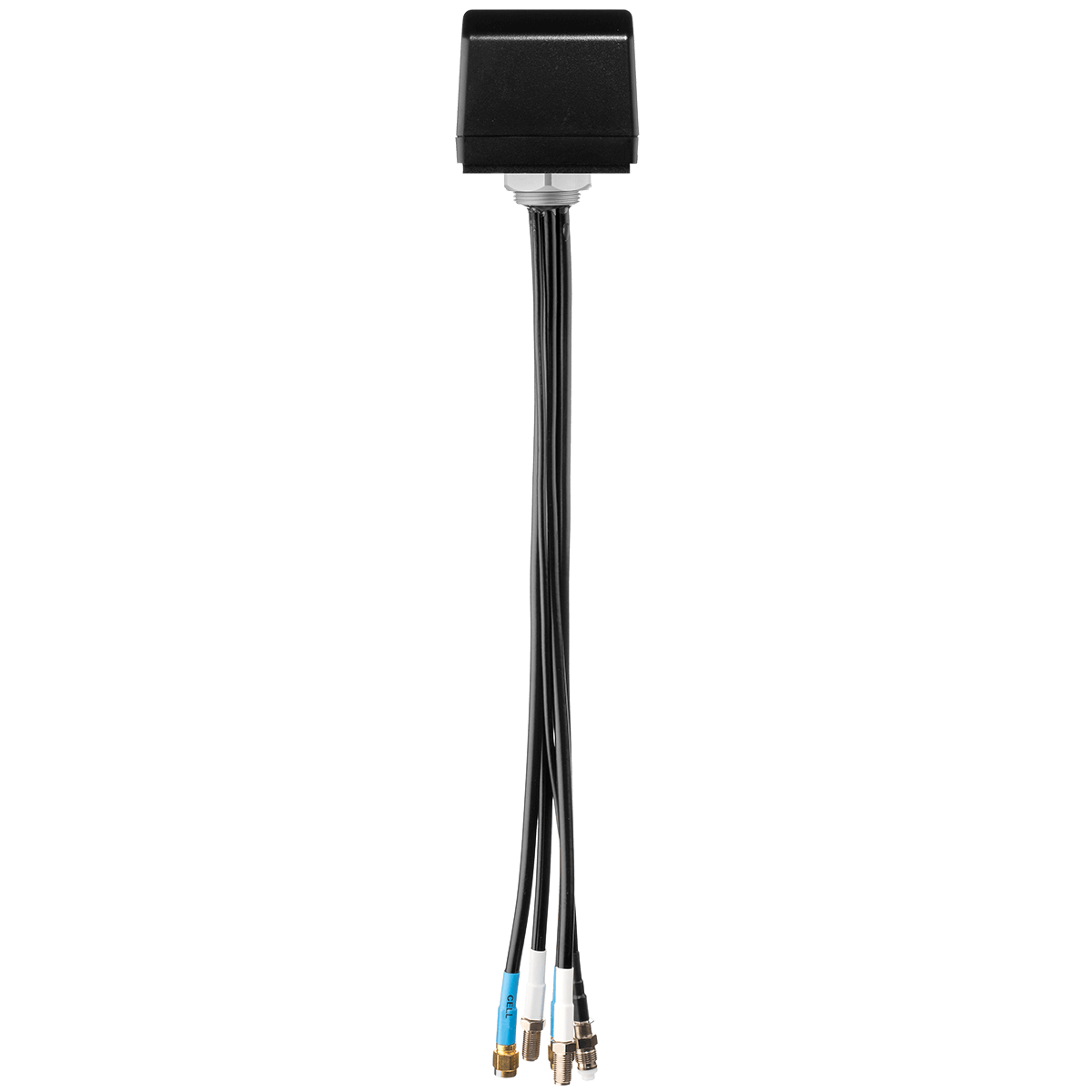

A rugged outdoor antenna, RECON5 is designed to provide high performance LTE and 5G connectivity for wireless machine-to-machine applications. The extremely low profile makes it practically undetectable and the small footprint allows it to mount to virtually any M2M or IoT enabled asset.

Common Part Numbers (inquire to Airgain for other configurations)

*Requires EZConnect Cable Harness

AP-RF5G-C2W2G-[x]-121-B10	MIMO LTE/5G x 2, Wi-Fi x 2 & GNSS, SMA on LTE/5G & GNSS, RP-SMA on Wi-Fi, Black, 10 feet coax
AP-RF5G-C2W2G-[x]-121-B3	MIMO LTE/5G x 2, Wi-Fi x 2 & GNSS, SMA on LTE/5G & GNSS, RP-SMA on Wi-Fi, Black, 3 feet coax
*AP-RF5G-C2W2G-[x]-B1	EZConnect Antenna with MIMO LTE/5G x 2, Wi-Fi x 2 & GNSS, Black, 1 foot coax
[z]-C2W2G-1-2-1-14	EZConnect Cable Harness with Cell x 2, Wi-Fi x 2, GNSS, SMA on Cell & GNSS, RP-SMA on Wi-Fi, 14 feet length
AP-RF5G-C2WG-[x]-121-B10	MIMO LTE/5G x 2, Wi-Fi x 1 & GNSS, SMA on LTE/5G & GNSS, RP-SMA on Wi-Fi, Black, 10 feet coax
AP-RF5G-C2WG-[x]-121-B3	MIMO LTE/5G x 2, Wi-Fi x 1 & GNSS, SMA on LTE/5G & GNSS, RP-SMA on Wi-Fi, Black, 3 feet coax
*AP-RF5G-C2WG-[x]-B1	EZConnect Antenna with MIMO LTE/5G x 2, Wi-Fi x 1 & GNSS, Black, 1 foot coax
[z]-C2WG-1-2-1-14	EZConnect Cable Harness with Cell x 2, Wi-Fi x 1, GNSS, SMA on Cell & GNSS, RP-SMA on Wi-Fi, 14 feet length
AP-RF5G-C2G-[x]-11-B10	MIMO LTE/5G x 2 & GNSS, SMA on LTE/5G & GNSS, Black, 10 feet coax
AP-RF5G-C2G-[x]-11-B3	MIMO LTE/5G x 2 & GNSS, SMA on LTE/5G & GNSS, Black, 3 feet coax
*AP-RF5G-C2G-[x]-B1	EZConnect Antenna with MIMO LTE/5G x 2 & GNSS, Black, 1 foot coax
[z]-C2G-1-1-14	EZConnect Cable Harness with MIMO/ Cell x 2 & GNSS, SMA on Cell & GNSS, 14 feet length
AP-RF5G-C2-[x]-1-B10	MIMO LTE/5G x 2, SMA on LTE/5G, Black, 10 feet coax
AP-RF5G-C2-[x]-1-B3	MIMO LTE/5G x 2, SMA on LTE/5G, Black, 3 feet coax
*AP-RF5G-C2-[x]-B1	EZConnect Antenna with MIMO LTE/5G x 2, Black, 1 foot coax
[z]-C2-1-14	EZConnect Cable Harness with Cell x 2, SMA on Cell, 14 feet length

Mounting Options [x]:

Q	Threaded Bolt Mount (must purchase AP-MAG for magnetic mount or AP-SCM for suction mount)

EZConnect Cable Harness [z]:

CH	Inquire to distributor for select SKUs
CHH	Custom Cable Harness with cable lengths up to 34 feet, and other variations

For mounting instructions please visit https://www.airgain.com/installation-and-removal-guides/.

Electrical Data

Frequency Range	Elements 1 up to 2: 617-960/1700-2700/3300-4200/5150-5850 MHz Elements 3 up to 4: 2.4/5.15-7.125 GHz Element 5 (optional): 1550~1610 MHz
Operational Bands	Elements 1 up to 2: 5G (Band 71, LTE, CBRS, LAA) Elements 3 up to 4: Wi-Fi 6E Element 5 (optional): GPS L1/GALILEO E1/GLONASS G1/BeiDou B1/QZSS L1
Peak Gain: Isotropic	Elements 1 up to 2: 617-960 MHz: 6.8 dBi; 1700-2700 MHz: 6.3 dBi; 3300-4200 MHz: 8.0 dBi; 5150-5850 MHz: 6.5 dBi Elements 3 up to 4: 2.4 GHz, 6.2 dBi; 5-7 GHz, 8.0 dBi Element 5 (optional): 33.4 dBi
Isolation	Elements 1 up to 2: >9 dB Elements 3 up to 4: >12 dB
Average Efficiency	Elements 1 up to 2: 617-960 MHz, >59%; 1700-2700 MHz, >53%; 3300-4200 MHz, >52%; 5150-5850 MHz, >44% Elements 3 up to 4: 2.4 GHz, >66%; 5-7 GHz, >49%
Correlation Co-efficient	Elements 1 up to 2: 617-960 MHz: <0.2; 1700-5850 MHz: <0.1

Environmental Data

Hazardous Substances	RoHS Compliant
Temperature	-40ºC to 85ºC (-40ºF to + 185ºF) Operating and Storage
Humidity (Non-Condensing)	60ºC and 95% RH Operating and Storage
Water Ingress	IP67 and IP69K
Shock and Vibration	Conformance to MIL-STD 810G

Mounting Data

Dimensions	Height: 1.83” (46.5mm) Width: 2.20” (56.0mm) Length: 8.03” (204.0mm)
Color	Black (B)

GNSS Data – Ceramic Patch Antenna Specification

Bandwidth	1558-1610 MHz
Gain@Zenith	0 dBi
Polarization	R.H.C.P.
Axial Ratio	3.0 dB Typ.

GNSS Data – LNA Specification

Noise Figure	1.2 dB
Gain	35 dBi
VSWR	<2:1
Voltage	1.6V~10V
Current	9+/[email protected]
