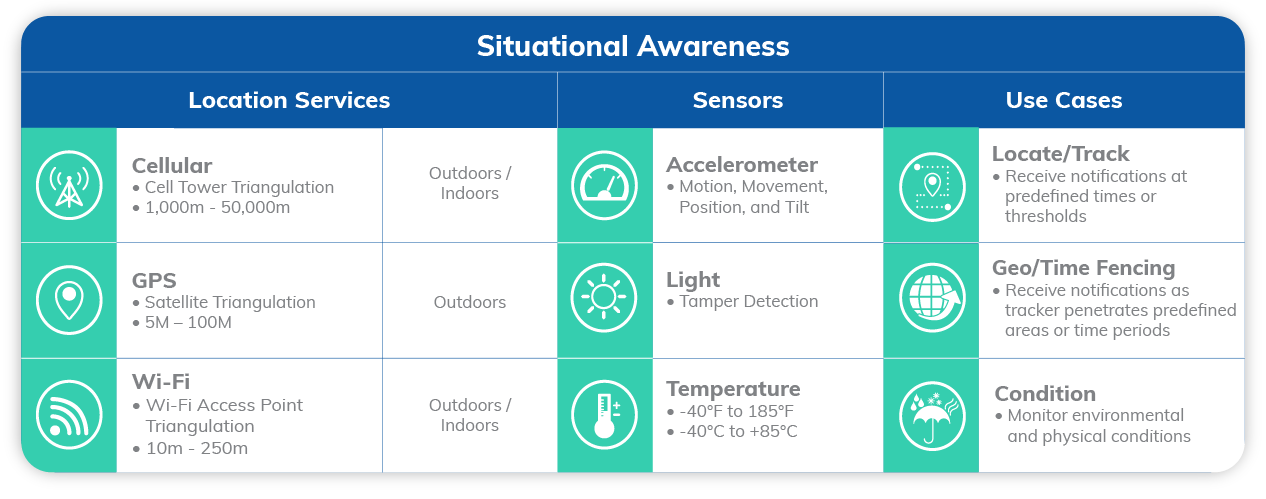

The Airgain AT6 brings situational awareness to the Supply Chain. A robust, scalable, edge-to-enterprise solution, the AT6 allows you to quickly track, protect and optimize your asset portfolio. Designed to fit between the pallet stringers, the Airgain AT6 device leverages LTE-M Cellular Connectivity, Wi-Fi, Cellular triangulation and GPS for location services and an accelerometer, light and temperature sensor for condition monitoring. The AT6 is equipped with a Bluetooth radio, allowing the device to function as a Gateway for BLE tags, supporting hub and spoke implementations. The NLink Platform enables you to quickly configure your AT6 device to your unique use case and seamlessly connect to your enterprise. The AT6 is a fully enclosed IP-66 device with robust battery life and is globally capable, supporting multiple frequency bands.
The NLink Platform provides centralized device and configuration management to accommodate a vast array of use cases. Each device’s personality can be configured by modifying parameters in the cloud and gracefully integrates with the enterprise.
 |
Features and Benefits:
|

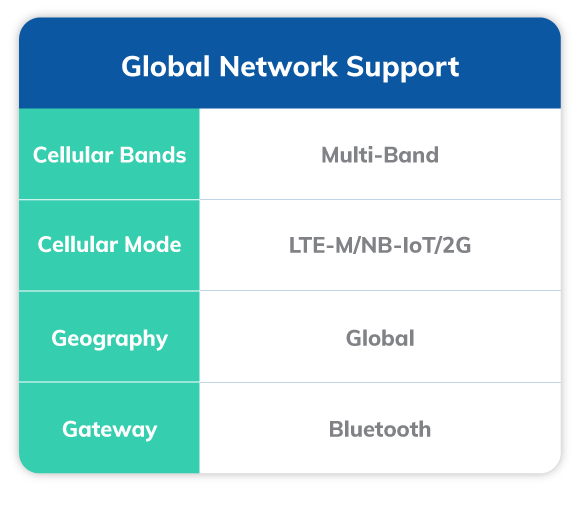

The Airgain Asset Tracking Solution leverages the latest low power wide area (LPWA) cellular technology which supports the Internet of Things through lower device complexity and extended coverage. Supporting multiple frequency bands, all our Asset Tracking devices are globally capable. Our strategic carrier relationships provide increasing geographic coverage and 2G fallback as these networks are rolled out.
Multi-band because there is no single cellular network.
The rate at which the Asset Tracker checks in to the cloud is a significant factor in determining battery life. As the number of times a device checks-in increases, the overall battery life will be reduced.
The NL-AT5 runs on 4 AA lithium batteries. When configured to sample and report one time per day, the expected life is 8 years. For applications requiring faster reporting intervals, contact us and we’ll provide detailed characterization data.
The Airgain Asset Tracking Solution is a tightly coupled device-network-software solution.
| NL-AT6 | Global |
| LTE Category | LTE-M, NB-IoT |
| LTE Frequency Bands | B1, B2, B3, B4, B5, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B66 |
| 2G Frequency Band | 2G fallback |
| Dimensions | 4.9” x 1.4” x 0.69” (124mm x 35.5mm x 17.4mm) |
| Weight | 2.5 oz |
| Rugged | IP66 |
| Environment | -40 to +85C (-40°F to 185°F) |
| Tags | Max 1800 BLE tags per scan |
| Storage | Max storage space on device 65,000 BLE tag records |
| Supported Protocols |
|
| Wi-Fi | Wi-Fi Access Point Triangulation, 10-250m |
| Cellular | Cell Tower Triangulation, 1,000-50,000m |
| 3 Axis Accelerometer | Motion, Movement, Position or Tilt |
| Light | Tamper Detection |
| Temperature | -40 to +70C |
| Replaceable | 2AA |
| How do I get started? | We offer a Deployment Kit for piloting and defining your specific application: Purchase a Deployment Kit at https://go.nimbelink.com. Or, alternatively, you can contact us at 612-285-3433 or [email protected] to discuss. |
| Can the solution be configured? | Yes, we have designed our solution to be highly configurable. We provide robust configuration through APIs therefore enabling the platform to remotely change the frequency of sensing and reporting requirements. |
| Can the product be private labeled? | Yes, please contact us at 612-285-3433 or [email protected] to discuss. |
| I purchased a deployment kit. Now what? | We have developed the NimbeLink Asset Tracking Solution to be as seamless as possible. The units will arrive running, connected to the deployment dashboard. Set up a 15-minute call with one of our experts to walk you through all the capabilities of the solution. |
| Can the data be sent to my system? | Yes, we offer a client-accessible API to push data to any enterprise system. |
| Can I buy the hardware without NLink? | No, the hardware is tightly coupled with NLink, our system management platform. This is how we can promise fast time to market and a secure, flexible solution. |
| Can I use my own cell plan? | Yes, the Asset Tracking Solution ships with included data plans. Volume manufacturing orders can be set up to use your provided SIM cards. |
