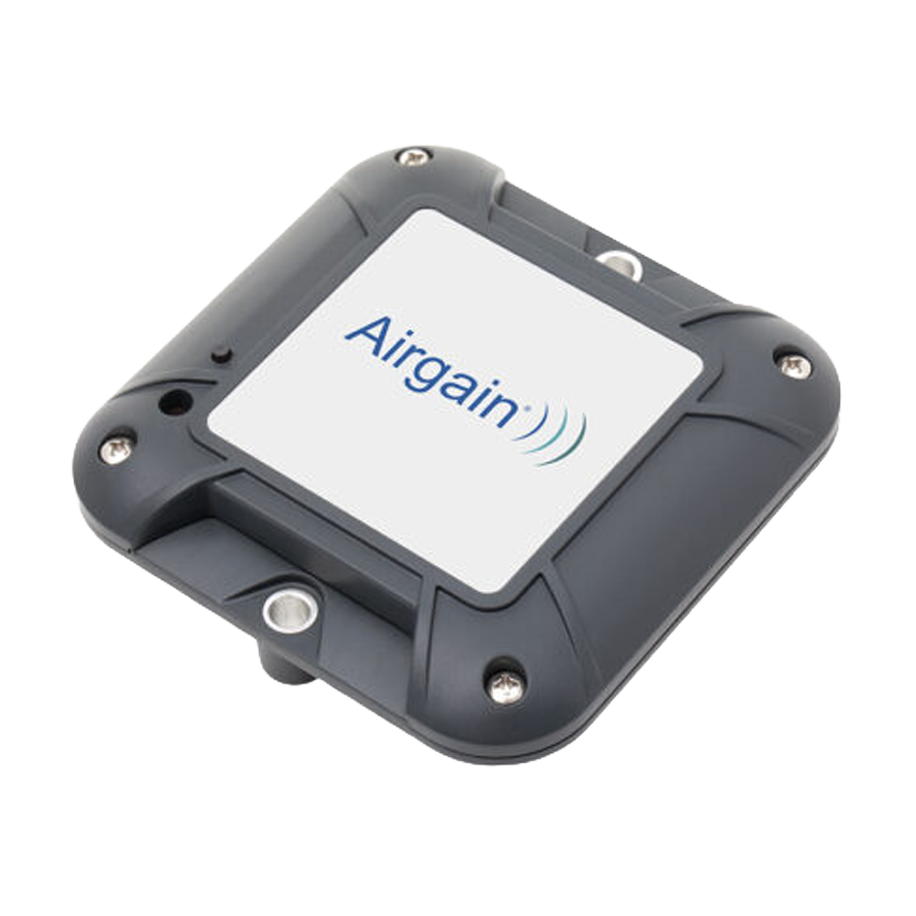

Airgain Asset Tracking Solutions are customized edge-to-enterprise solutions that allow you to quickly track, protect and optimize your assets. Each application-ready Solution tightly integrates asset tracking devices, network connectivity, and software all of which are precisely configured to your use cases. The NimbeLink AT2 is a versatile, ruggedized asset-tracking device that leverages cellular connectivity, GPS and Wi-Fi to deliver bulletproof monitoring of location, motion, temperature, and humidity. The AT2 device is waterproof and dustproof, works indoors and out, and carries a robust power management system that delivers exceptional battery life. And like all Airgain asset tracking devices, the AT2 supports multiple frequency bands and is globally capable.

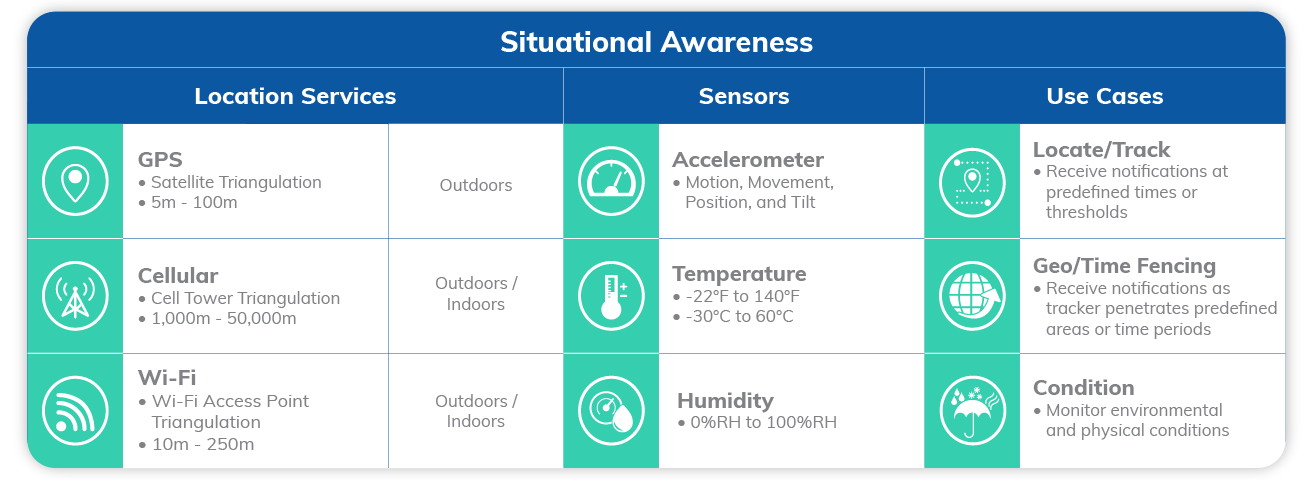

Situational Awareness – the perception of environmental elements and events with respect to time or space, the comprehension of their meaning, and the projection of their future status.
| Location Services |
|
| Sensors |
|
| Use Cases |
|

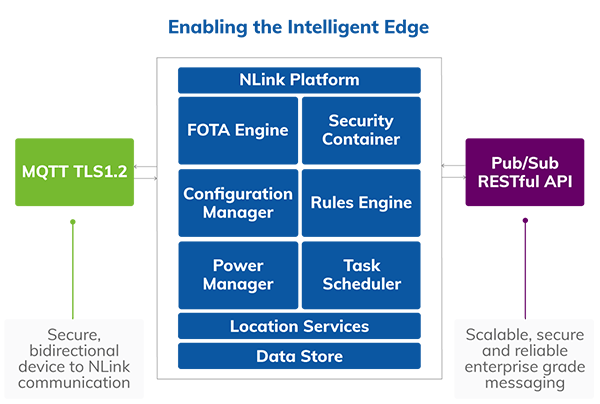

The NLink Platform provides centralized device and configuration management to accommodate a vast array of use cases. Each device’s personality can be configured by modifying parameters in the cloud and gracefully integrates with the enterprise.
 |
Features and Benefits:
|

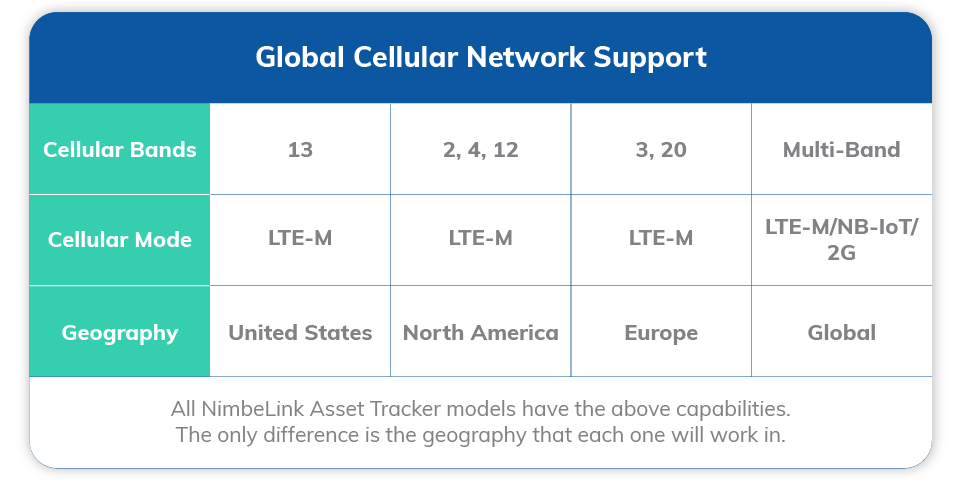

The NimbeLink Asset Tracking Solution leverages the latest low power wide area (LPWA) cellular technology which supports the Internet of Things through lower device complexity and extended coverage. Supporting multiple frequency bands, all our Asset Tracking devices are globally capable. Our strategic carrier relationships provide increasing geographic coverage and 2G fallback as these networks are rolled out.
Multi-band because there is no single cellular network.
The rate at which the Asset Tracker checks in to the cloud is a significant factor in determining battery life. The number of times the device checks-in will reduce the overall life of the battery.

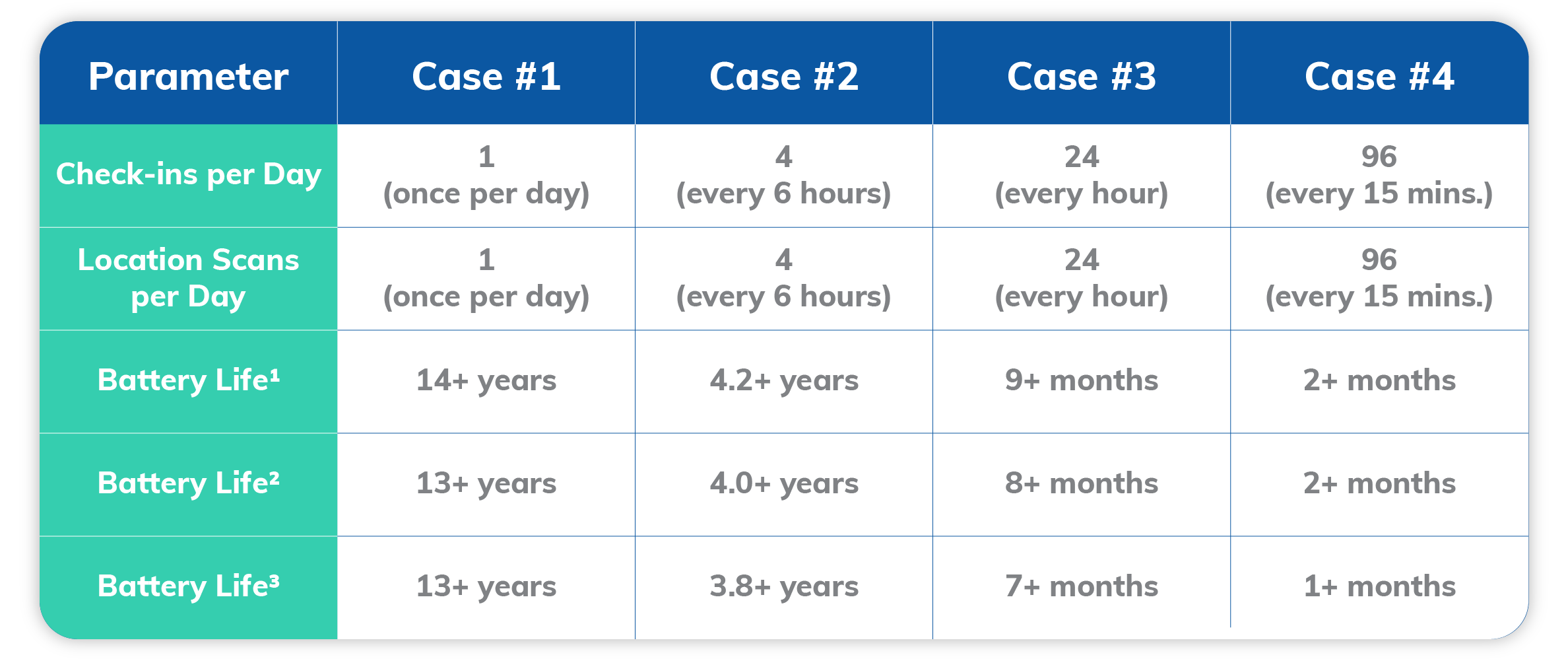

Another factor to consider is the rate of failure in making cellular connections. As the rate of failed connections increase, the overall battery life decreases. Consider the table below, with several example use cases:

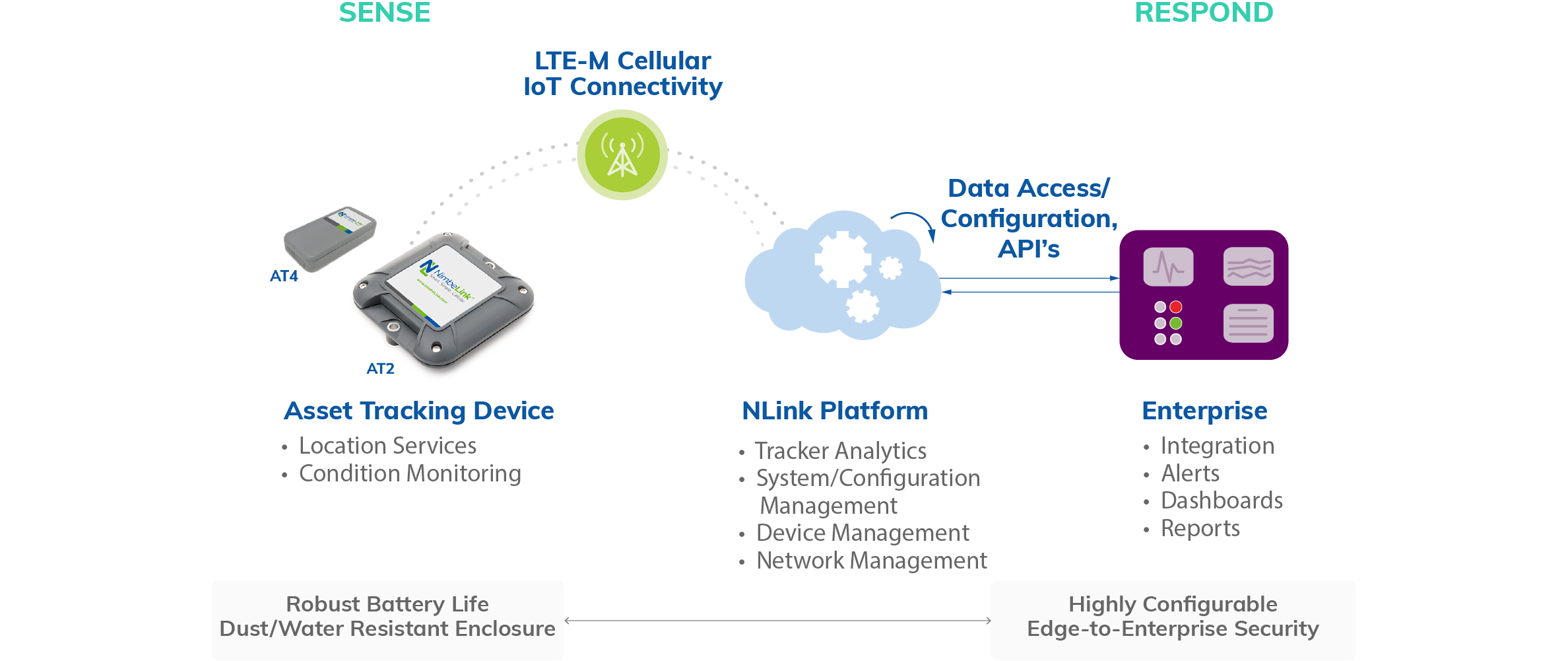

The NimbeLink Asset Tracking Solution is an edge-to-enterprise, tightly coupled device/network/software solution.
| NL-AT2VS, NL-AT2VQ, NLAT2AQ | North America |
| NL-AT2OQ | Europe |
| LTE Category | LTE-M, NB-IoT |
| LTE Frequency Bands |
|
| 2G Frequency Band | GSM850, GSM900, DCS1800, PCS1900 |

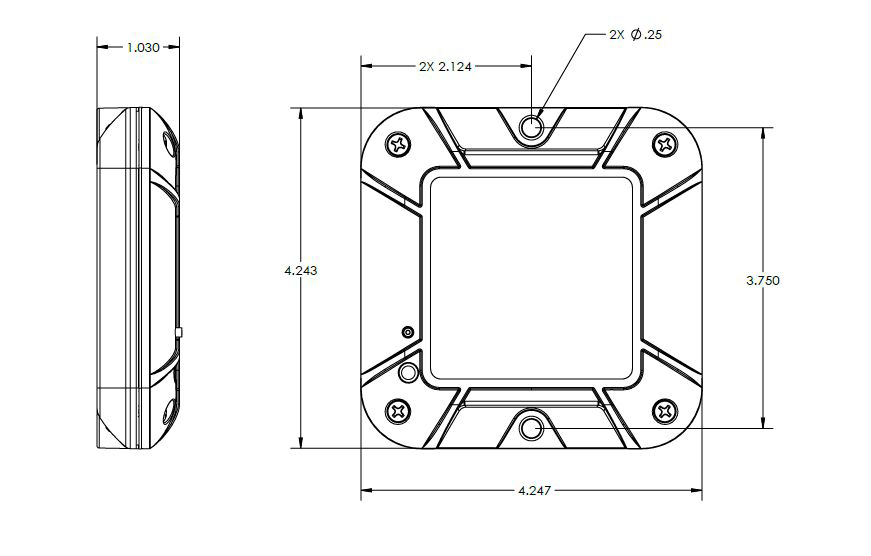

| Dimensions | 4” x 4” x 1” (101.6 x 101.6 x 25.4mm) |
| Weight | 8 oz |
| Rugged | IP67 |
| Environment | -30 to +60C (-22°F to 140°F) |
| Cellular | Cell Tower Triangulation, 1,000-50,000m |
| GPS | Satelitte Triangulation, 5m-100m |
| Wi-Fi | Wi-Fi Access Point Triangulation, 10-250m |
| Geofencing | Geofencing Capable – Configure using the NLink Platform |
| Sensors |
|
| How do I get started? | We offer a Deployment Kit for piloting and defining your specific application: Purchase a Deployment Kit at https://go.nimbelink.com. Or, alternatively, you can contact us at 612-285-3433 or [email protected] to discuss. |
| Can the solution be configured? | Yes, we have designed our solution to be highly configurable. We provide robust configuration through APIs therefore enabling the platform to remotely change the frequency of sensing and reporting requirements. |

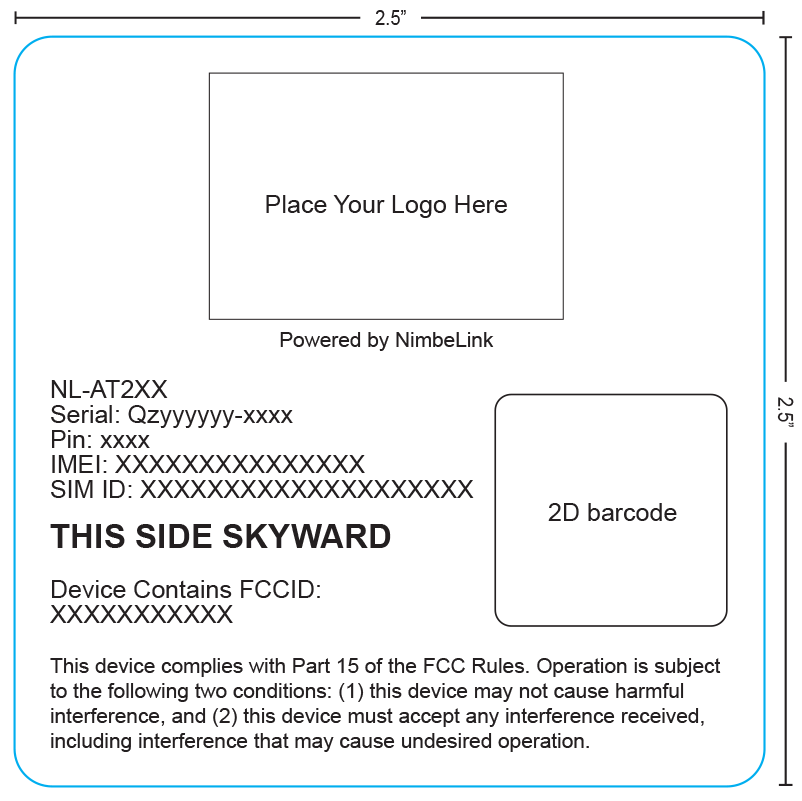

| Can the product be private labeled? | Yes, please contact us at 612-285-3433 or [email protected] to discuss. |
| I purchased a deployment kit. Now what? | We have developed the NimbeLink Asset Tracking Solution to be as seamless as possible. The units will arrive running, connected to the deployment dashboard. Set up a 15-minute call with one of our experts to walk you through all the capabilities of the solution. |
| Can the data be sent to my system? | Yes, we offer a client-accessible API to push data to any enterprise system. |
| Can I buy the hardware without NLink? | No, the hardware is tightly coupled with NLink, our system management platform. This is how we can promise fast time to market and a secure, flexible solution. |
| Can I use my own cell plan? | Yes, the Asset Tracking Solution ships with included data plans. Volume manufacturing orders can be set up to use your provided SIM cards. |
