MaxBeam™ High Gain Embedded Antennas


  • Products Overview
  • Antenna-Modem
  • Fleet, M2M, IIoT Antennas (Antenna Plus)
  • Embedded Antennas
  • Dipole Antennas
  • Carrier-Class Antennas

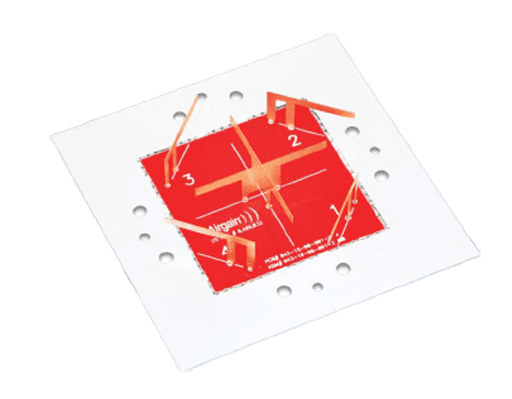

  • Airgain MaxBeam High Gain Antennas utilize patented beamforming technology to deliver up to double signal strength and receive more sensitivity than conventional antenna solutions. The superior performance is derived by combining the benefits of high gain directional antenna elements with high isolation between each beam. Each antenna utilizes mixed material, integrated multi-element assemblies to provide optimal performance and turnkey integration. The MaxBeam antenna family offers maximum coverage designed for WLAN and Cellular/LTE frequency bands. Single, dual, tri-band and concurrent radio, as well as switched Smart Antenna options are available.

    • Peak gains up to 7.0 dBi, integrated antenna assemblies for optimal performance

    • Single and multi-element subassemblies allow for turnkey integration

    • Single band, dual band, and concurrent radio options for WLAN frequency bands

    • Switched Smart Antenna Configurations for 802.11n/ac provide extended and QoS benefits

    Profile Embedded Antennas

    Airgain Profile Embedded Antennas feature highly efficient PCB-based low profile design optimized for confined industrial designs. Ideal for embedded applications requiring integration flexibility, the Profile family includes case, through-hole, and SMT mount designs and is available in single, dual, and tri band applications.

    • Highly efficient PCB-based antenna solutions for ODMs and OEMs

    • Low profile embedded antenna design for confined industrial designs

    • Case, through-hole, & SMT mount designs for embedded applications requiring integration customization

    • Designed for use in WLAN, RF4CE, DECT, LPD (433MHz), and Cellular LTE frequency bands

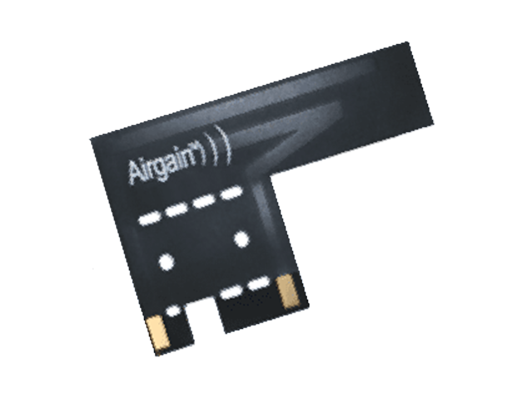

    Profile Contour Embedded Antennas

    The Profile Contour Embedded Antenna line accommodates more placement options within design constraints for curved cases and miniaturization of smaller wireless devices including wearables and M2M applications. The Flexible Printed Circuit Board (FPC) material provides robust assembly variations for more demanding customer applications. The flexible design allows for maximum ease of integration and is available for use in numerous frequency bands.

    • The FPC flexibility accommodates smaller form factors without sacrificing performance

    • Adhesive allows antenna to easily wrap around internal cases or clips

    • Designed for use in WLAN, RFCE, DECT, LPD (433MHz), UHF, and Cellular LTE frequency bands

    • Support for additional bands is available by request.

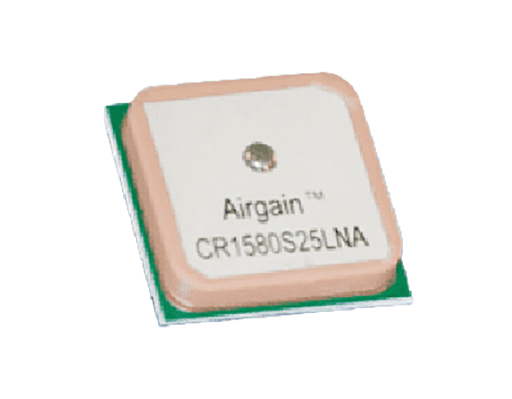

    Profile Ceramic Embedded Antennas

    Airgain dielectric ceramic patch antennas are a low profile, high efficiency, high gain, passive or active antenna solution for GNSS/GPS/GLONASS/BeiDou applications, such as mobile handheld tracking, and vehicle navigation. Designed for embedded use, these antennas provide reliable performance in a compact package sizes with micro‐strip GPS right‐hand circular polarization, terminated via leaded center pin with various ease-of-placement mounting options.

    • Precision tuned ceramic patch

    • Low profile embedded applications

    • Available in passive and active (with low noise amplified) versions

    • Airgain offers customized tuning and integration support

    Ultra Embedded Antennas

    The Ultra line of embedded antennas has been designed for lower cost, embedded applications. The stamped metal design allows for rapid customization and tuning to each device, making them ideal for embedded applications requiring integration flexibility. Ideal for very high volume applications, these antennas utilize superior materials and plating to ensure optimal performance and extended life. Available in cabled and PCB mount designs, for single or dual-band feed operation.

    • Peak gains of up to 5dBi

    • No matching components for most applications

    • Single and dual band applications

    • Available for use in WLAN, DECT, Z-Wave, ZigBee, and LTE frequency bands.

    SmartMax™ Embedded Antennas

    SmartMax chipset agnostic antennas utilize dynamic spatial and polarity selection, providing optimal throughput performance and coverage for 802.11ac/ax Wi-Fi systems. Designed for set top box, gateway, and smart HDTV deployments, SmartMax improves spatial correlation among received signals, producing a significant improvement in the performance of MIMO systems. Airgain’s SmartMax provides up to a 25% downlink throughput improvement for Smart TV applications. SmartMax antennas require no dedicated connectivity to Wi-Fi chipset base-band circuits, minimizing the cost and complexity typically associated with Smart Antenna System integration.

    • Improved coverage and throughput for 802.11ac/ax systems

    • Improved spatial correlation among received signals

    • Simplified installation and minimal integration complexity

    • Available in Single antenna for STB, and Multi-antenna for Smart UHD 4K TV

    Contact Airgain to learn which antenna solutions fit your design specifications.
