AirgainConnect^® Ethernet Switch

Purpose-Built for Fleet Deployments

Description
Features
Specification
Documentation

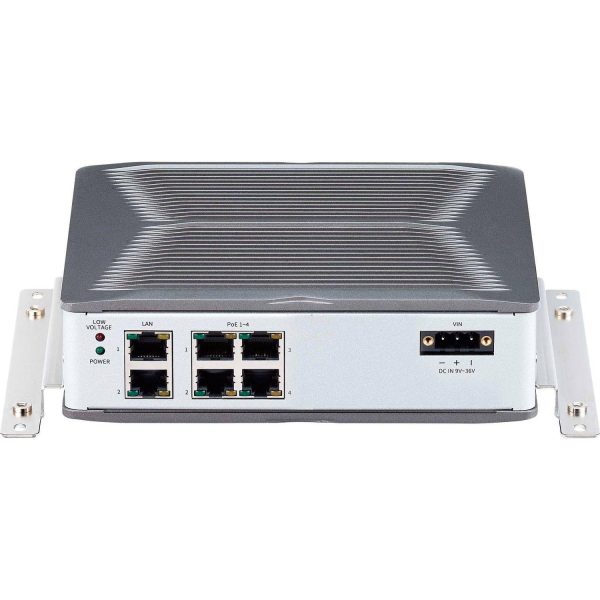

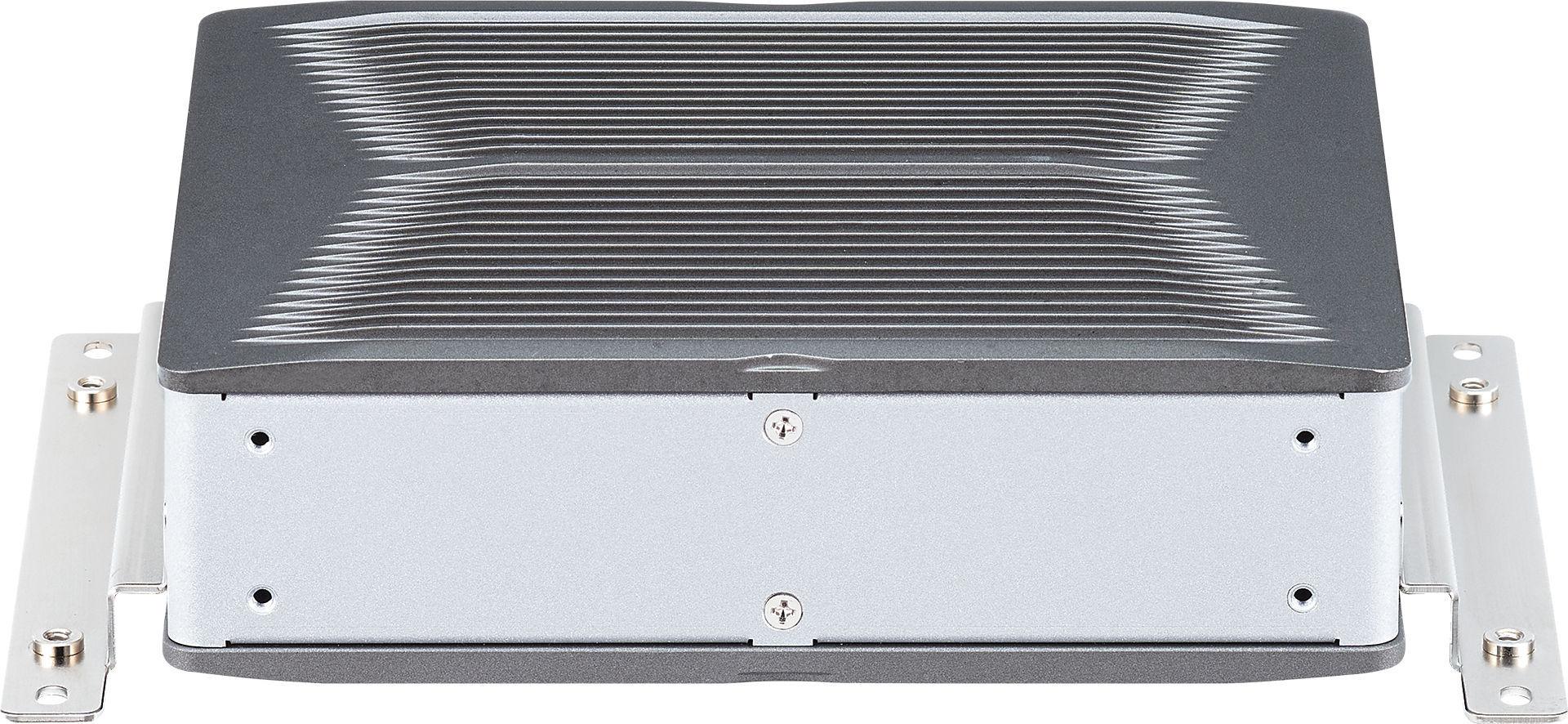

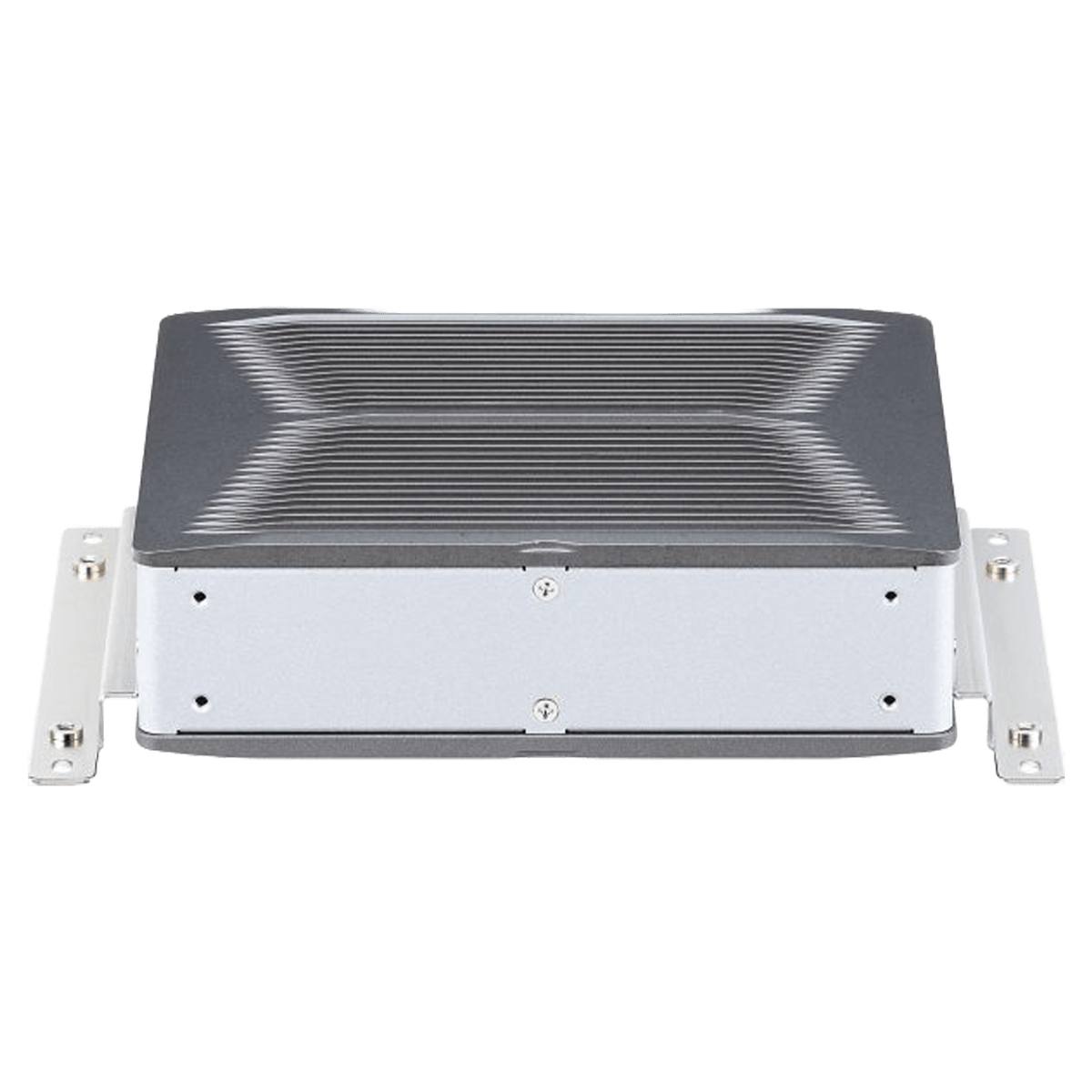

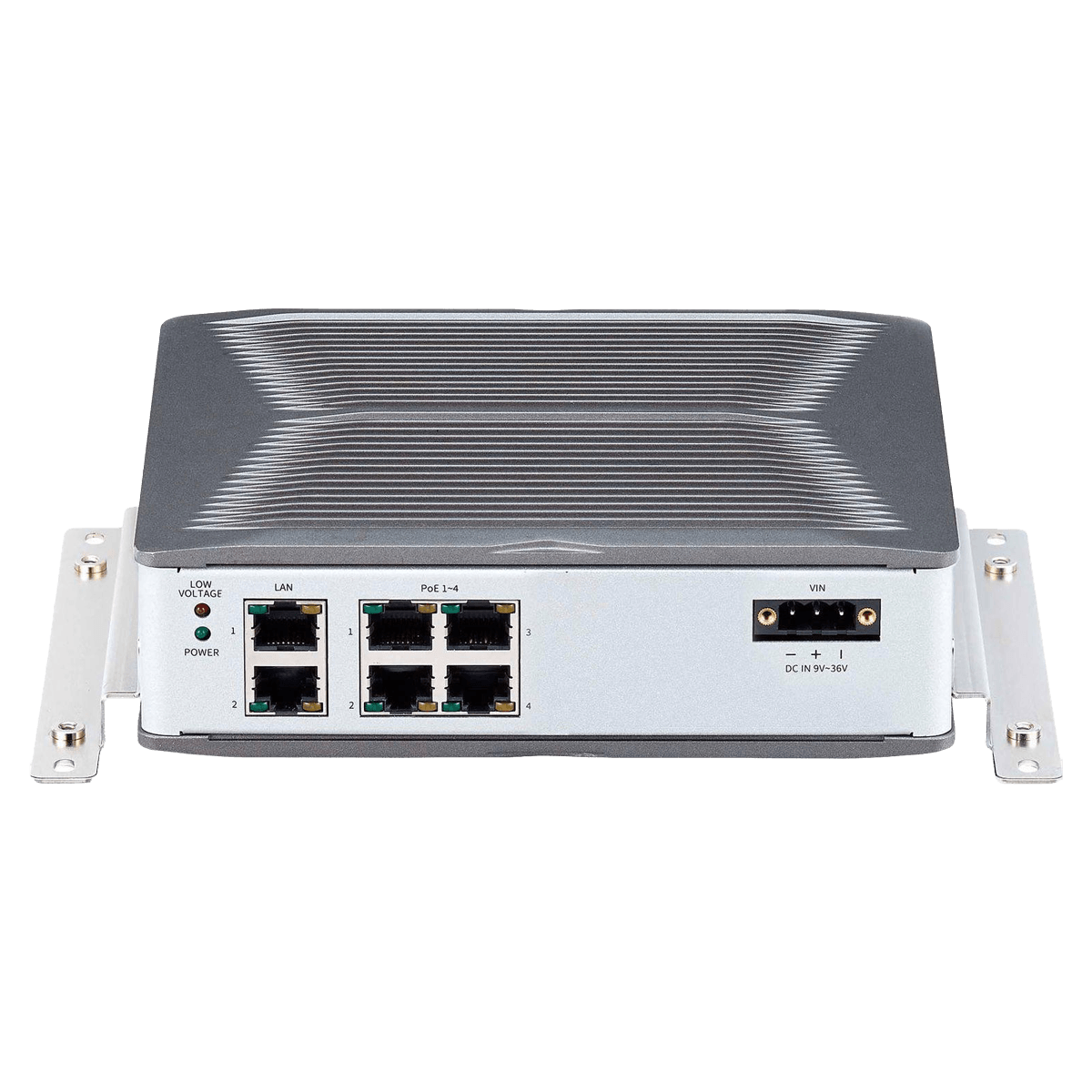

The AirgainConnect^® Ethernet Switch is an unmanaged 4+2 Gigabit PoE+ switch built for vehicle installations. It is the ideal accessory for AC-Fleet deployments requiring expanded Ethernet connectivity for in-vehicle IP cameras, MDTs (Laptops), digital evidence recorders, sensors, and other network devices.

With its automotive-grade power design, support for PoE+ standards, and rugged enclosure, the AirgainConnect Ethernet Switch ensures reliable, high-speed LAN connectivity in even the harshest fleet environments.

Part Numbers

CY-AFES-E6P4

4-Port PoE+ Gigabit Switch + 2 LAN Ports, 9–36VDC, Ignition + Delay Timer

4 PoE+ Ports: Power and connect up to 4 devices via IEEE 802.3af/at compliant PoE+ (up to 120W total power)
Built for Vehicles: Designed for rugged automotive environments with ignition sense, low-voltage protection, and wide 9–36VDC input
Compact & Fanless: Small form factor with passive cooling for quiet, durable operation
Smart Power Management: Supports ignition-controlled on/off with delay timer and battery protection DIP settings
Rugged Performance: Operates in extreme temperatures (-40°C to 70°C), (CE, FCC Class A and IC/ISED (Canada) certifications)
Plug-and-Play Simplicity: Unmanaged, auto-negotiating switch with store-and-forward architecture
Optimized for AC-Fleet™: Ideal for expanding Ethernet connectivity in public safety, utility, and field service vehicle fleets

Connectivity Data

Switch Type	Unmanaged, store-and-forward, auto-negotiation
Ports	4 x 10/100/1000 Mbps RJ45 PoE+ + 2 x 10/100/1000 Mbps RJ45 LAN
PoE Standard	IEEE 802.3af/at (PoE+, end-span)
PoE Power Budget	Up to 120W total, max 30W per port
MAC Address Table	2K entries
Frame Support	Jumbo frames up to 9216 bytes

Environmental Data

Operating Temperature	-40°C to 70°C
Storage Temperature	-40°C to 85°C
Humidity	10% to 90% RH (non-condensing)
Vibration Resistance	MIL-STD-810H, 2g random vibration
Shock Resistance	MIL-STD-810H, up to 75g

Power Data

Power Input	9–36VDC with ignition sense and low-voltage protection
Power Management	DIP-switch for power off delay and voltage threshold

Mechanical Data

Dimensions	211 x 55 x 140 mm (8.3″ x 2.2″ x 5.5″)
Mounting Options	Wall mount (included), DIN rail (optional)
Weight	1kg (approx. 2.2 lbs)
LED Indicators	Power, Link, Activity, PoE status, Low-voltage warning

Certifications

CE, FCC Class A and IC/ISED (Canada) certifications
